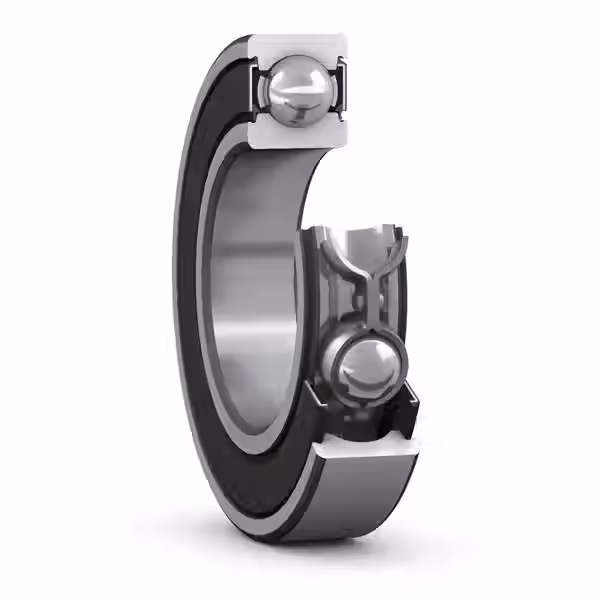

Deep groove ball bearing with seals
Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
Integral sealing prolongs bearing service life
Simple, versatile and robust design
Low friction and high-speed capability
Accommodate radial and axial loads in both directions
Require little maintenance

Dimensions
Bore diameter
8 mm
Outside diameter
22 mm
Width
7 mm

Properties
Filling slots
Without
Number of rows
1
Locating feature, bearing outer ring
None
Bore type
Cylindrical
Cage
Sheet metal
Matched arrangement
No
Radial internal clearance
CN
Material, bearing
Bearing steel
Coating
Without
Sealing
Seal on both sides
Sealing type
Contact
Lubricant
Grease
Relubrication feature
Without


Performance
Basic dynamic load rating
3.45 kN
Basic static load rating
1.37 kN
Limiting speed
22 000 r/min
SKF performance class
SKF Explorer
